Landing Crafts

Landing Craft Utility (LCU) wreck in Subic Bay, Philippines These landing crafts were designed to transport troops and small to medium vehicles right to the beach.
3D Files in my Shop

There are different Landing crafts in Subic Bay :

  • LCM Landing Craft Mechanics (a small LC)
  • LST Landing Craft Tank (a big armed ship) at 26-32 m / 85-105 ft
  • LCU at 9-22 m / 30-73 ft
  • LCU Upside down at 36 m / 120 ft

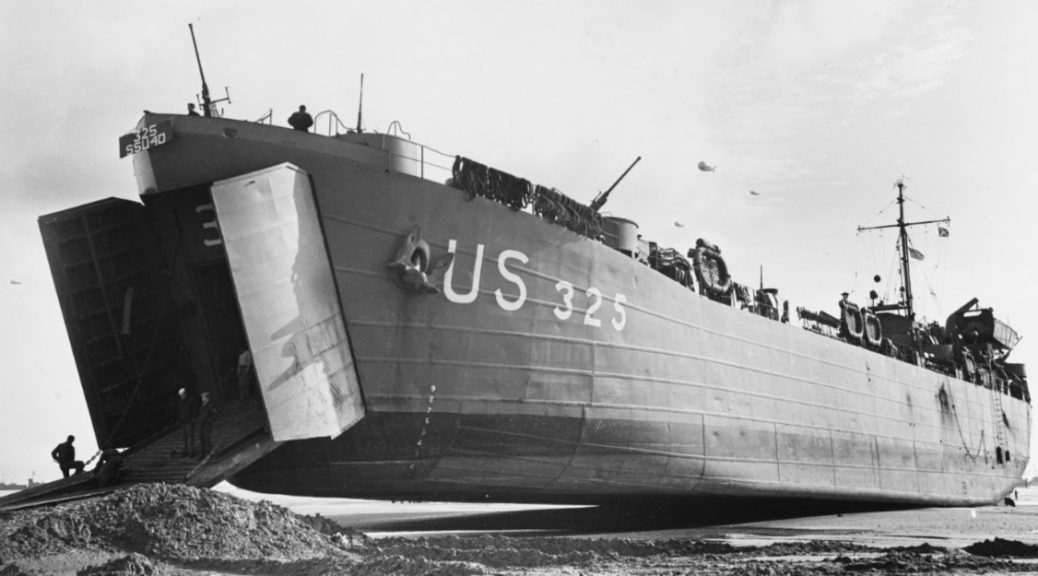

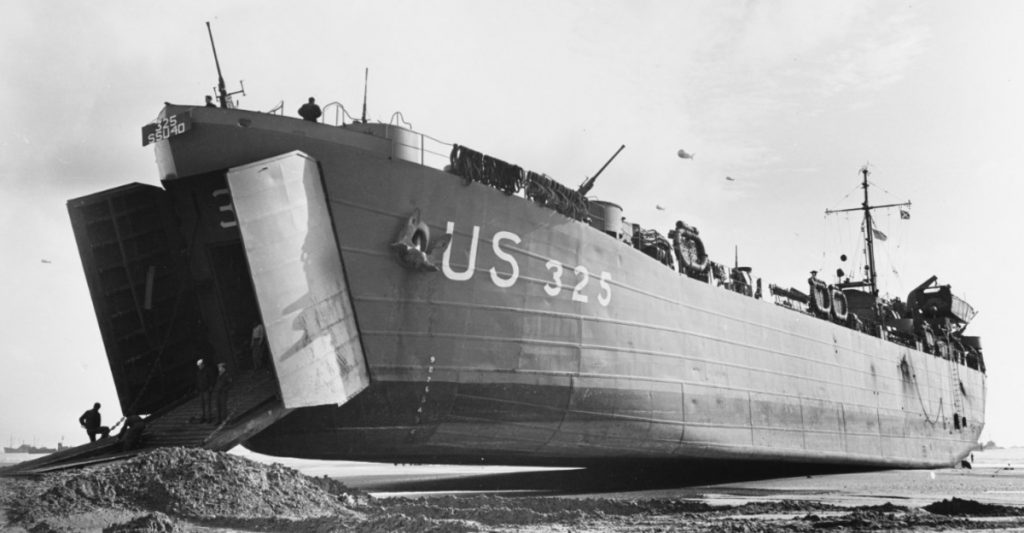

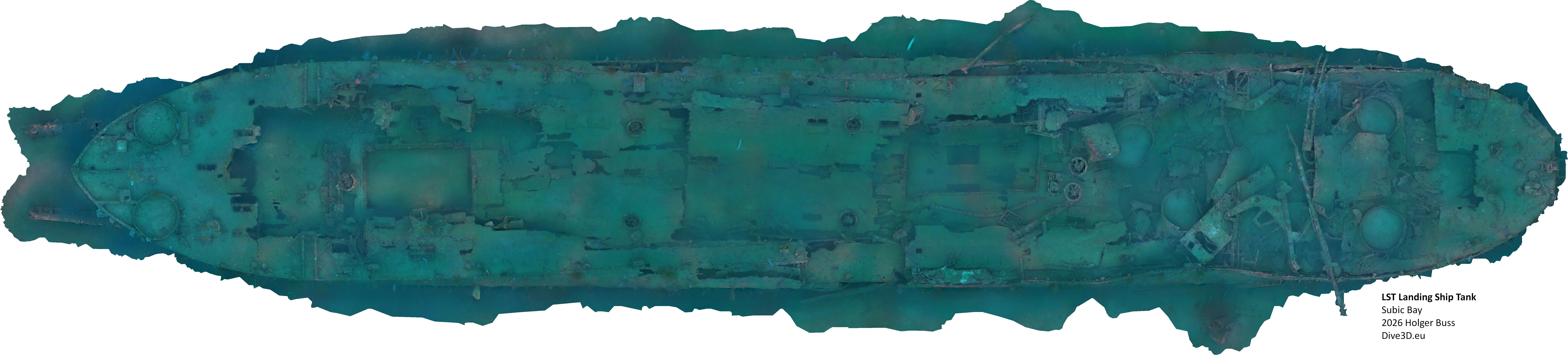

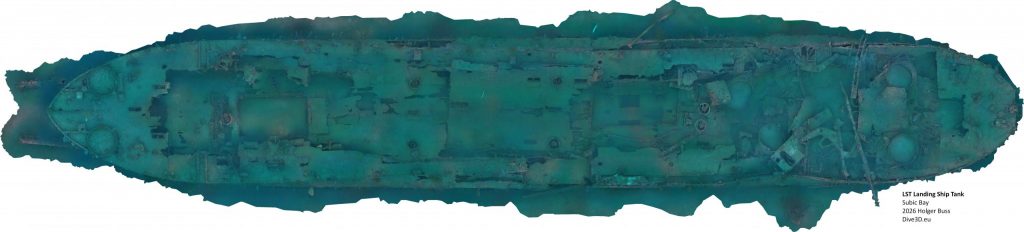

LST (Landing Ship Tank)

In a depth of 26-32 m / 85-105 ft

Landing Ship Tanks (LSTs) were specialized vessels developed during World War II to support amphibious operations. Designed to deliver tanks, vehicles, artillery, and troops directly onto unimproved shorelines, the earliest models were British-modified versions of existing ships. Their pivotal role in the 1940 Dunkirk evacuation highlighted a critical strategic need, prompting the Admiralty to commission a fleet of ocean-going vessels capable of beaching to deploy heavy cargo and personnel.

LCU

Depth 9-22 m / 30-73 ft and 36 m / 120 ft

They are incredibly strong and can sustain up to 800 pounds per square inch loaded directly onto its welded steel loading deck. The vessels have bow ramps for loading /unloading and can be moored in a line bow to stern gate to form a temporary pier like structure.

TECHNICAL SPECIFICATIONS OF THE LCU 1466
Length –115 ft 1 in (35.08 m)
Beam –34 ft 0 in (10.36 m)
Propulsion –3 x Gray Marine diesel engines, 675 hp (503 kW)
Surface Speed – 8 knots (15 km/h; 9.2 mph)
Range: 1’200nmi (2’200 km) at 6 kn (11 km/h)
Capacity – 300 Troops or 167 long tons (170 t)

3D-Files in my Shop

LCM

The Landing Craft Mechanized (LCM), also known as a “Landing Craft Mechanical,”. Produced by various manufacturers in both the UK and US, a total of 8,631 units—affectionately dubbed “Mike Boats” or “M-Boats”—were constructed between 1942 and 1945. This wreck lies in a water depth of 41 m / 135 ft

Displacement: 35 tonnes
Length : 13.6 m
Width : 4.27 m
Draught : 1.22 m
Machinery : two Chrysler 100 hp petrol engines
Speed : 7 knots
Crew : 6 men
Armament : two .303 in. Lewis guns
capacity: one medium tank, or 26.8 tons of cargo or 60 troops
100 men
54,500 lbs with 9 inches of freeboard
